Advantage:

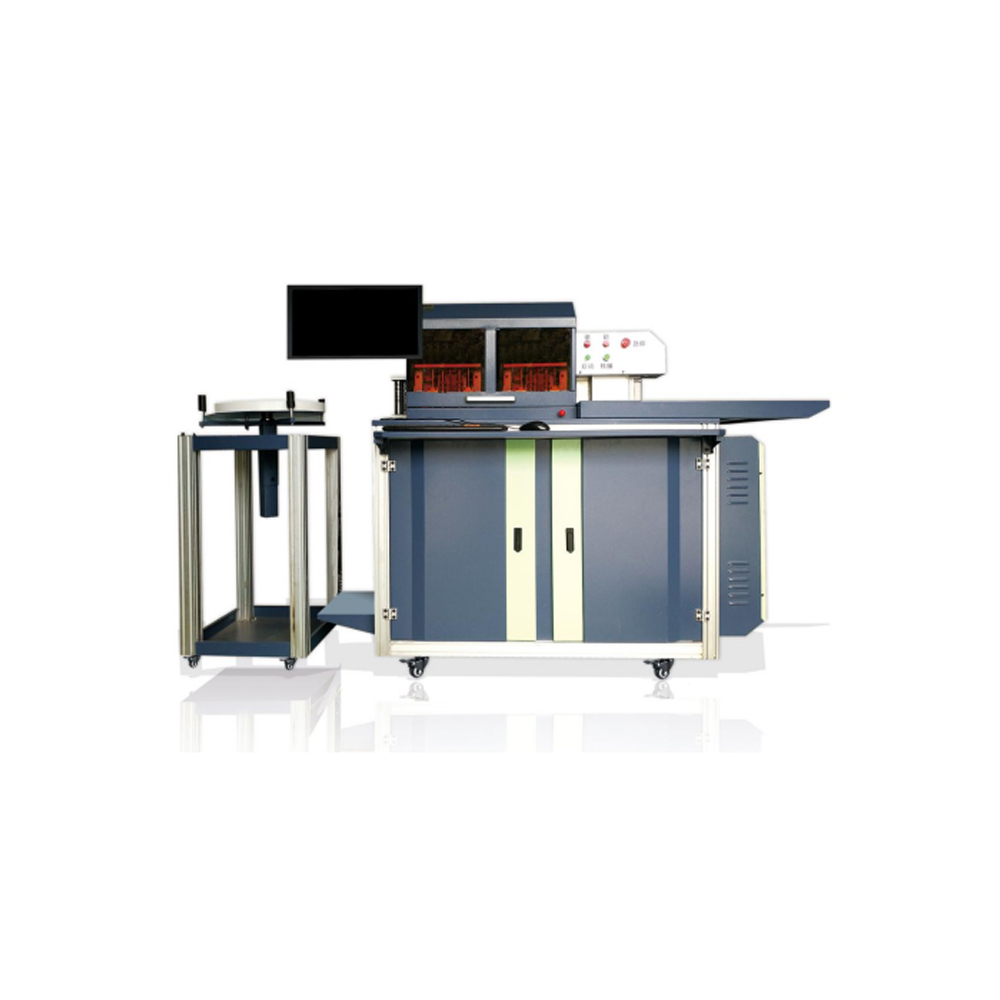

New type of three-in-one CNC bending machine, there are two working systems and different bending axis, one for stainless steel and iron, another for aluminum.When we need to slot and bend different materials, Don’t need exchange the cutter .we just need to convert into another system . and it is convenient for us to change the bending axis , just three to two minutes. Therefore, this new machine can save time and improve efficiency .

Features
1.Feeding section, manipulator clamping alternating feeding way
2.Sloting section, equipped with a key switch type double cutting system
3.Bending parts, high-speed expansion shaft bending, curved shape degree can reach 90%.
4.Feeding closed-loop control, to interact with the encoder testing institutions, feeding error compensation.
5.Intelligent shift, the software automatically generate corresponding to cooperate the contour offset mode.
6.Cutting tool compensation, the software will automatically perfect coordination of numerical calculation and cutting panel, without user adjust the original file.

Specifications
1. Feeding System: Circulation Clamp Feeding System
2. Slotting System: Planner Slotting System
3. Bending System: Double Bending Shaft Alternate Bending System
4. Suitable Material: Stainless Steel, Iron, Copper and Flat Aluminum
5. Material Thickness: ≤1.5mm
6. Material Height: ≤220mm
7. Accuracy: ±0.1mm
8. File Format: PLT, DXF, AI
9. Voltage: 220V/50HZ
10. Air Pressure: 0.6 Mpa
11. Power: ≤3.5KW
12. Software: Leetro Software CBS4
13. Machine Size: 1880*820*1650mm
14. Weight: 550kgs
